When specifying aluminum for evaporation, engineers frequently ask whether moving from 5N to 6N (or even from 4N6 to 5N) delivers meaningful benefits. The answer depends heavily on the sensitivity of the application to impurities, inclusions, and defects. In many cases, the performance gains from higher purity can be significant, but the decision should be based on whether those gains justify the added cost for the specific application.
Quantitative Impurity Comparison: 4N to 6N
The jump in purity from 4N to 6N represents a dramatic reduction in metallic impurities. Below is a typical comparison of total metallic impurity levels and the most problematic elements:
| Grade | Typical Impurities | Key Harmful Elements | Typical Applications |
| 4N (99.99%) | 100–300 ppm | Fe, Si, Cu, Mg, Na, K | General metallization, decorative coatings, less critical optical films |
| 4N6 (99.996%) | ~40–80 ppm | Reduced Fe, Cr, Mn, alkali metals | Better semiconductor metallization, improved optical coatings |
| 5N (99.999%) | 10–30 ppm | Low Fe, Cr, Mn, Cu | Most research & production evaporation, high-quality thin films |
| 6N (99.9999%) | < 5–10 ppm | Extremely low magnetic & alkali impurities | Quantum devices, high-Q resonators, ultra-low-loss coatings |
Key harmful impurities include Fe, Cr, and Mn (magnetic scattering centers), Cu (can affect electromigration), and alkali metals like Na and K (can cause instability in devices). Higher purity grades dramatically reduce these contaminants.
Impact on Key Performance Metrics
Residual Resistivity Ratio (RRR)
RRR is one of the most important metrics for evaluating high purity aluminum, especially for cryogenic and superconducting applications. It measures the ratio of electrical resistivity at room temperature to that at very low temperatures (typically 4.2 K). Higher RRR values indicate lower impurity and defect scattering.
Typical RRR ranges by purity grade:
| Grade | Typical RRR Range | Notes |
| 4N (99.99%) | 100 – 400 | Suitable for many general applications; limited cryogenic performance |
| 4N6 (99.996%) | 300 – 1,000 | Good improvement; useful for many research and some production uses |
| 5N (99.999%) | 1,000 – 4,000+ | Excellent for most high-performance thin film and cryogenic applications |
| 6N (99.9999%) | 5,000 – 15,000+ | Highest performance; ideal for quantum computing and high-Q superconducting devices |
Note: Actual RRR values depend heavily on the manufacturing process (especially vacuum directional solidification), grain structure, and mechanical deformation history. Materials produced by HPA using vacuum directional solidification consistently achieve the higher end of these ranges.
Superconducting Films
In superconducting thin films (e.g., Josephson junctions, resonators, qubits), impurity scattering shortens the electron mean free path. This increases kinetic inductance and microwave loss while reducing the superconducting transition temperature (Tc) and quality factor (Q). 6N material consistently shows measurable improvements in Q-factor and coherence times compared to 5N.
Thin Film Quality
Lower impurity levels reduce absorption and scattering losses in optical coatings and improve electromigration resistance in semiconductor interconnects. In many optical and semiconductor applications, the jump from 4N6 to 5N already provides significant benefits, while 6N is reserved for the most demanding cases.
When Each Purity Level Makes Sense
4N / 4N6 — Suitable for general metallization, decorative coatings, and less critical optical films where cost sensitivity is high and performance requirements are moderate.
5N — The sweet spot for most research and production evaporation work. Offers excellent film quality, good process stability, and strong value. Recommended for the majority of thin-film, optical, and semiconductor applications.
6N — Justified when the application demands maximum performance: quantum computing devices, high-coherence superconducting resonators, ultra-low-loss optical coatings, or experiments requiring the highest reproducibility and lowest defect density.
Technical Considerations
Higher purity grades generally offer better-controlled surface oxides, which can lead to cleaner evaporation behavior and reduced spitting. However, the largest performance gains often come not just from lower total impurities, but from the reduction of specific harmful elements (especially magnetic and alkali impurities). For many applications, moving from 4N6 to 5N delivers the majority of the benefit, while the jump from 5N to 6N provides incremental but important gains in the most sensitive devices.
Frequently Asked Questions
Q: Will I see a measurable difference between 5N and 6N in my films?
A: In standard semiconductor or optical applications, the difference is often subtle. In quantum devices, high-performance RF resonators, or ultra-low-loss coatings, the improvement in Q-factor, coherence time, or defect density can be significant and worth the investment.
Q: Does higher purity reduce spitting during evaporation?
A: Indirectly yes. Lower impurity content and better-controlled surface oxides generally produce cleaner, more stable evaporation behavior with reduced particle generation.
Q: When should I choose 4N6 instead of 5N?
A: 4N6 is often sufficient for many semiconductor metallization layers, general optical coatings, and applications where the performance gains from 5N do not justify the higher cost.
Q: Is 6N always better than 5N?
A: Not always. For many production processes, 5N provides excellent results at a significantly lower cost. 6N is best reserved for applications where the highest possible film quality and reproducibility are critical.

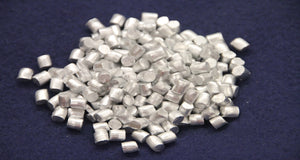

Explore our high purity aluminum evaporation materials
