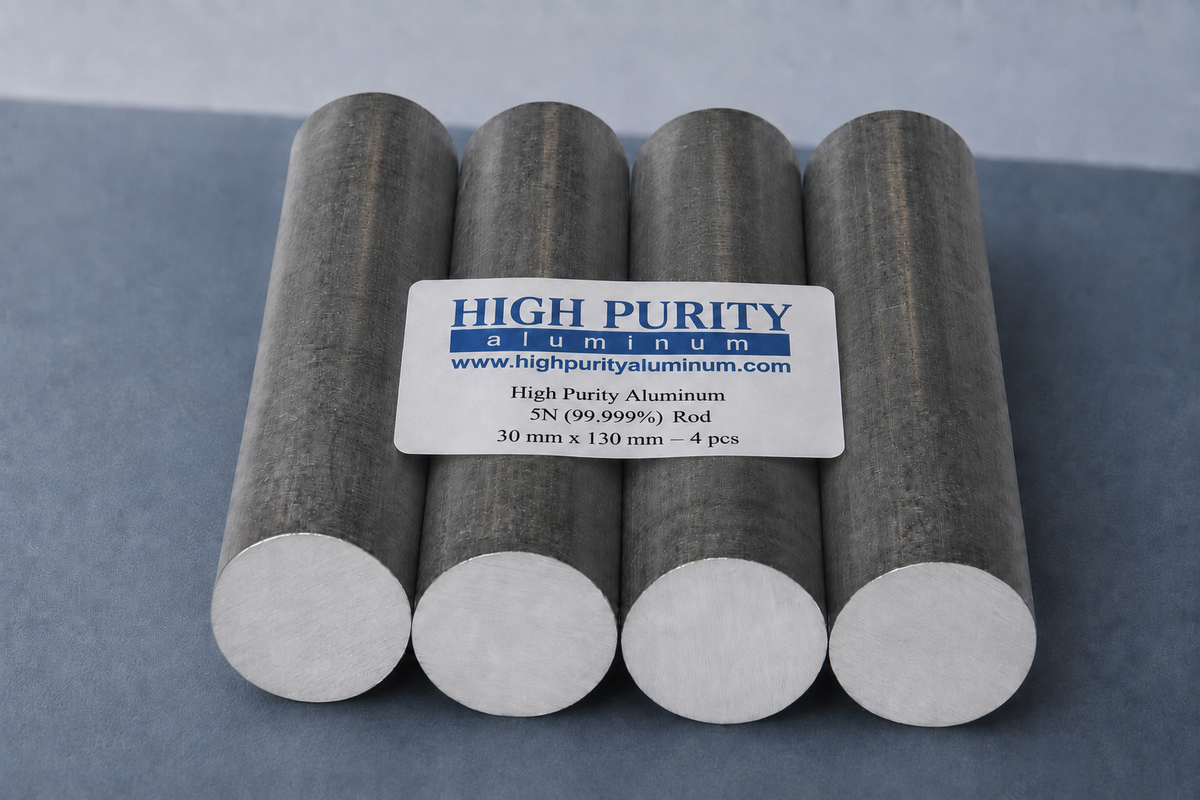

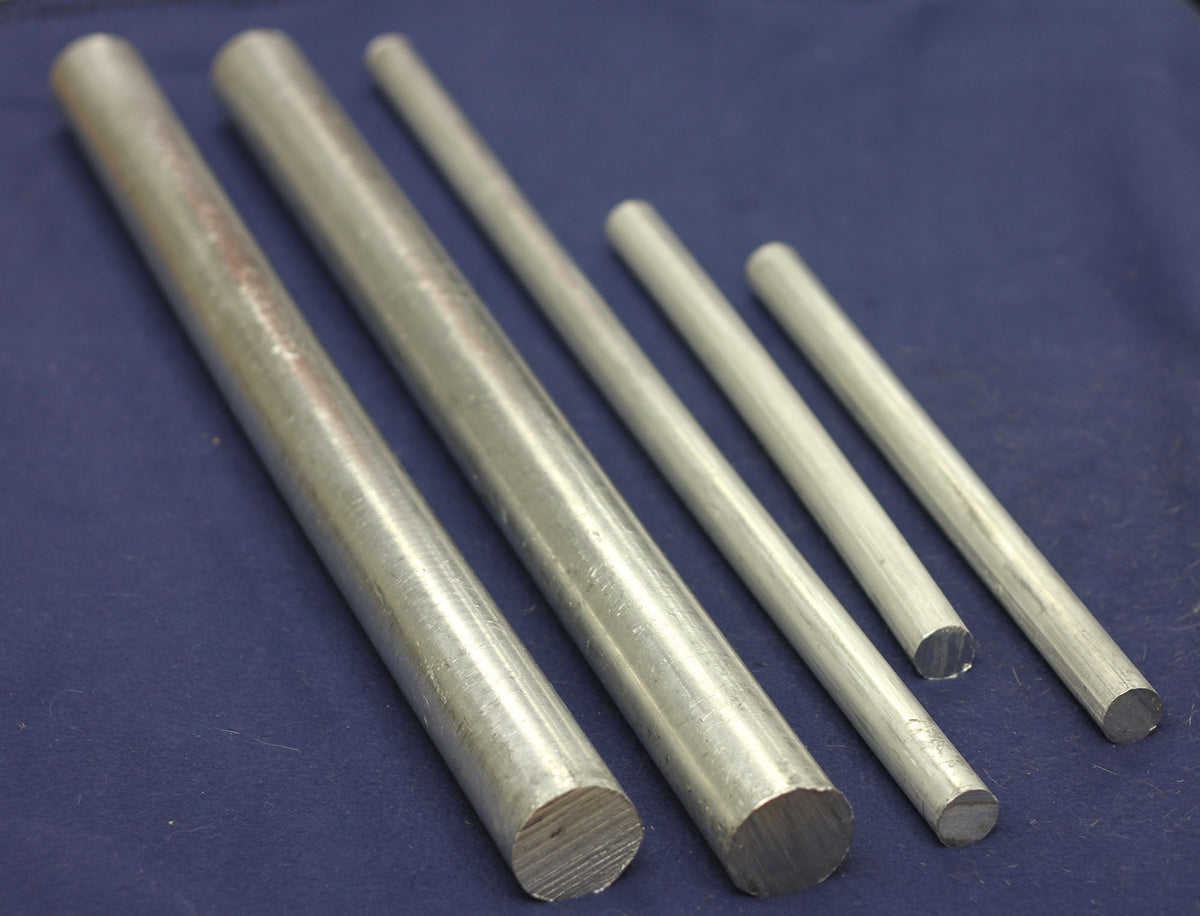

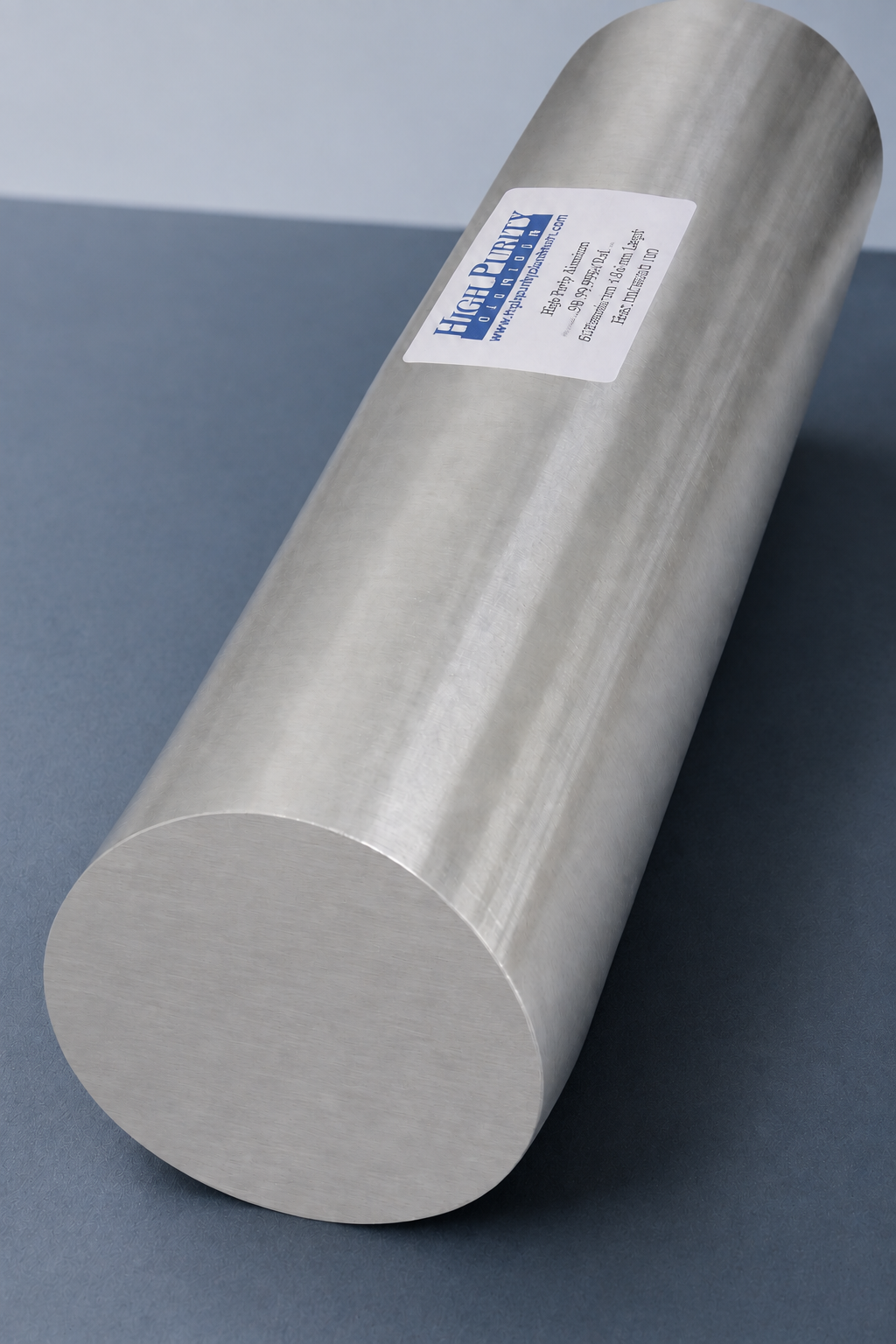

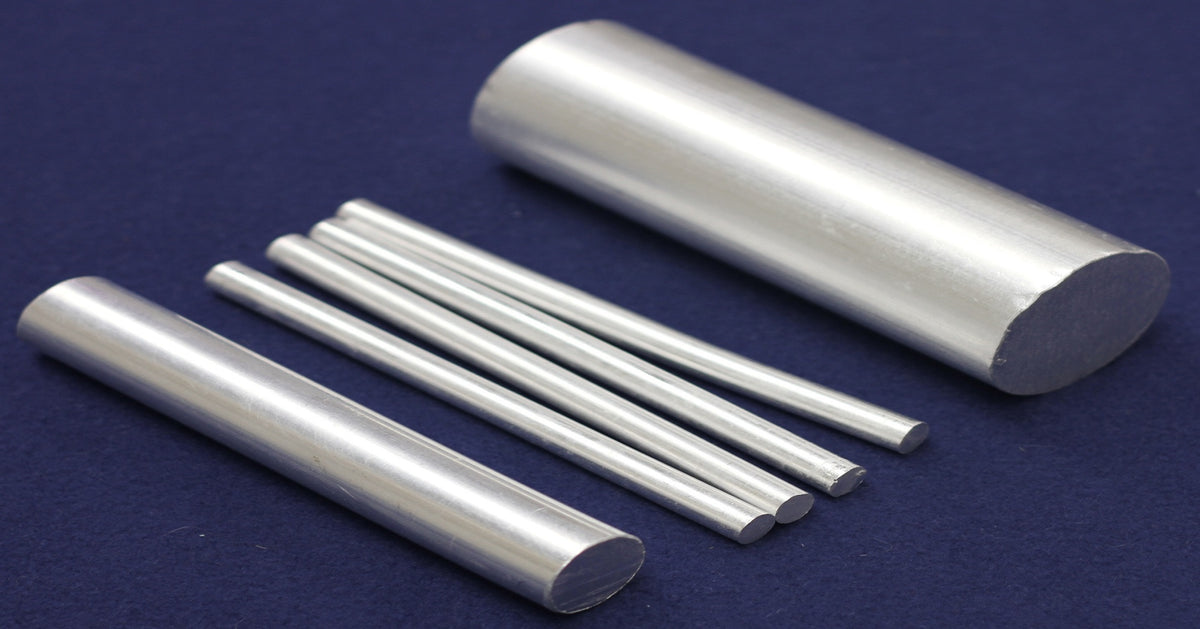

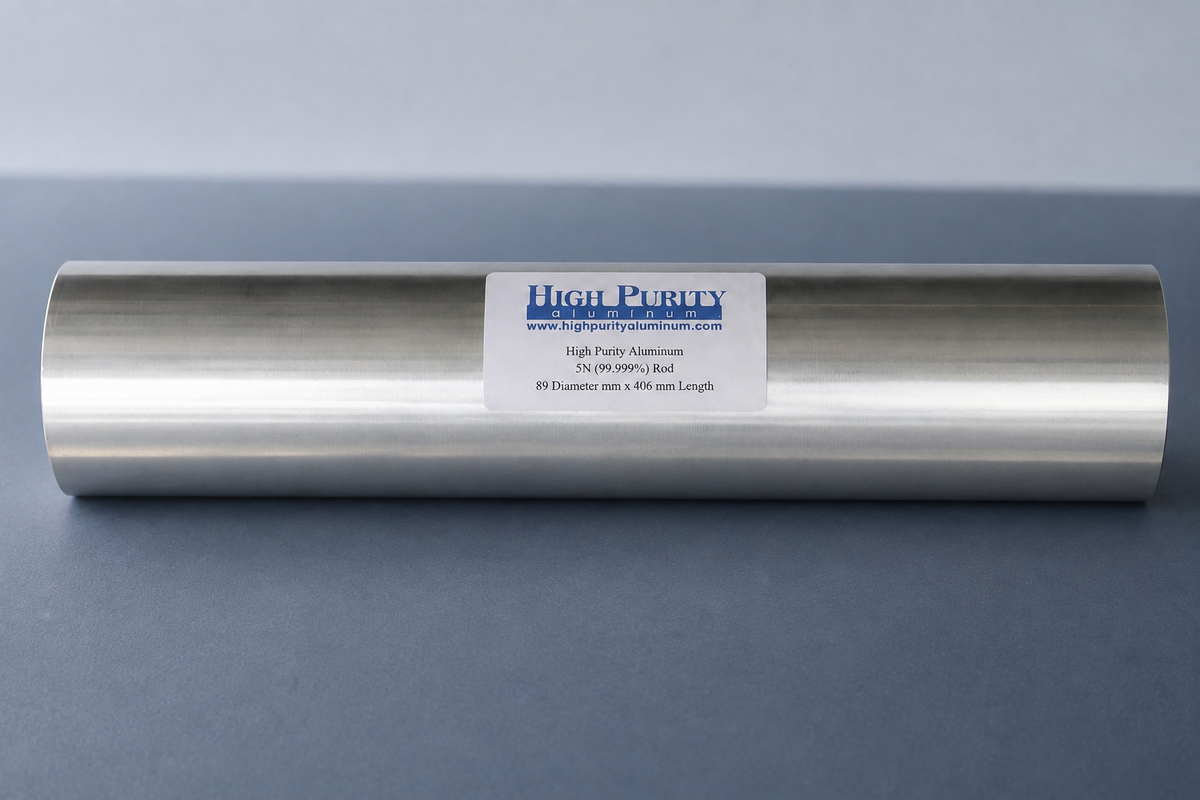

High purity aluminum rods are precision products in solid cylindrical form, manufactured for use in machining, evaporation feedstock, and advanced research applications where low impurity levels and consistent material properties are essential. Produced from aluminum refined through directional solidification under vacuum, these rods offer exceptionally low inclusion content, enabling high Residual Resistivity Ratio (RRR) performance required for cryogenic and quantum applications.
Rods are available in straight lengths in the following standard diameters:
|
Small |
Medium |
Large |
|
0.12" (3 mm) |
1" (25 mm) |
5" (127 mm) |
|
0.4" (10 mm) |
1.18" (30 mm) |
5.9" (150 mm) |
|
0.47" (12 mm) |
2" (50 mm) |
7” (180 mm) |
|
0.875” (22 mm) |
3.5” (89 mm) |
12” (310 mm) |
|
|
4.5" (114 mm) |
|
Available in purities from 4N (99.99%) to 6N (99.9999%), with full GDMS Certificates of Analysis provided with each shipment. Specialty alloy grades, including AlSi, AlCu, AlCuSi, AlMg, AlMgSi, AlNi, and AlNd, are available for applications requiring controlled chemistry.
For custom diameters under 5.9" (150 mm), a new die can be procured at the customer’s expense. Most standard items ship within 1–2 business days of order confirmation. Custom diameters, lengths, and alloy compositions are available to meet specialized project requirements.
Typical Applications
• Precision machining and component fabrication
• Feedstock for pellet and slug production
• Direct use in thermal and electron-beam evaporation
• High-purity components for quantum computing and superconducting systems
• Cryogenic research and high-RRR applications
• University, national laboratory, and industrial R&D
Most standard items ship within 1–2 business days. Custom diameters, lengths, and alloy compositions are available to meet specialized project requirements.
Related Articles:
Maintaining Purity Aluminum During Processing and Alloying
SpaceX & Aerospace Materials
Typical Applications
- Semiconductor metallization and interconnect layers
- Flat panel display and touch screen coatings
- Optical coatings and precision mirrors
- Hard disk drive media
- Solar cell contacts
- MEMS and sensor device fabrication
- Decorative and functional PVD coatings
Send us your target design for a custom quote
| Material | Aluminum (Al) |
| Purity range | 4N (99.99%) to 6N (99.9999%) |
| Alloy options | AlSi, AlCu, AlCuSi, AlMg, AlMgSi, AlNi, AlNd |
| Available diameters | 1" (25mm) to 12" (305mm) |
| Available thicknesses | 0.125" (3.2mm) to 1" (25.4mm) |
| Production method | Directional solidification in vacuum (5N and above). Cast (4N). |
| Forms | Disk, bonded assemblies, custom shapes |
| Certification | GDMS COA included with each shipment |
| Shipping | 1 to 2 business days (standard US), 2 to 5 days international |
| Custom orders | Custom sizes, thicknesses, alloys, and bonded assemblies available |
What purity sputtering target do I need for semiconductor applications?
Can I get a bonded sputtering target assembly?
What is the difference between cast and directionally solidified targets?
What sizes are available and can you make custom sizes?
